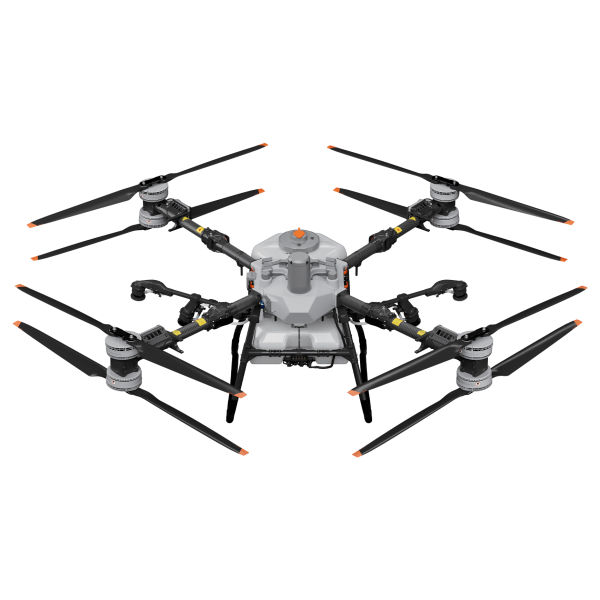

DJI Agras T100

The DJI Agras T100 is a heavy-duty agricultural drone designed for large-scale spraying, spreading, and precision farming. It combines massive payload capacity with advanced sensing and navigation to maximise efficiency in the field.

Quick Specs

• Spray tank capacity: 100 L

• Spreader capacity: 150 L

• Max payload (spraying): 100 kg (approx.)

• Max flow rate: 30 L/min (standard 2-nozzle), up to 40 L/min (4-nozzle option)

• Spray width: 5–13 m (depending on height/nozzle)

• Droplet size: ~50–500 μm

• Battery: DB2160 Intelligent Flight Battery, ~41,000 mAh, 14.7 kg

• Spreading throughput: High-rate centrifugal system

• Navigation: RTK-enabled, O3 Agras transmission

• Sensors: LiDAR, millimetre-wave radar, multi-vision obstacle avoidance

• Typical flight time: short under full load; designed for fast swap operations

Key Features

• 100 L spray tank and 150 L spreader for fewer refills

• Up to 40 L/min spray throughput with 4-nozzle configuration

• Advanced LiDAR + radar + vision sensors for 360° obstacle awareness

• RTK-level positioning for precise coverage

• Modular tank/spreader swap for flexible operations

• Hot-swappable batteries and rapid charge system

FAQ

• Tank size? 100 L spray, 150 L spreader.

• Flight time fully loaded? Usually under 15 minutes; plan for multiple batteries.

• Spray rate and width? 30–40 L/min, 5–13 m width depending on setup.

• Night/low-signal use? Equipped with advanced sensors, but always confirm against local regs.

• Where to find official docs? DJI Agriculture’s official website and product manual.
