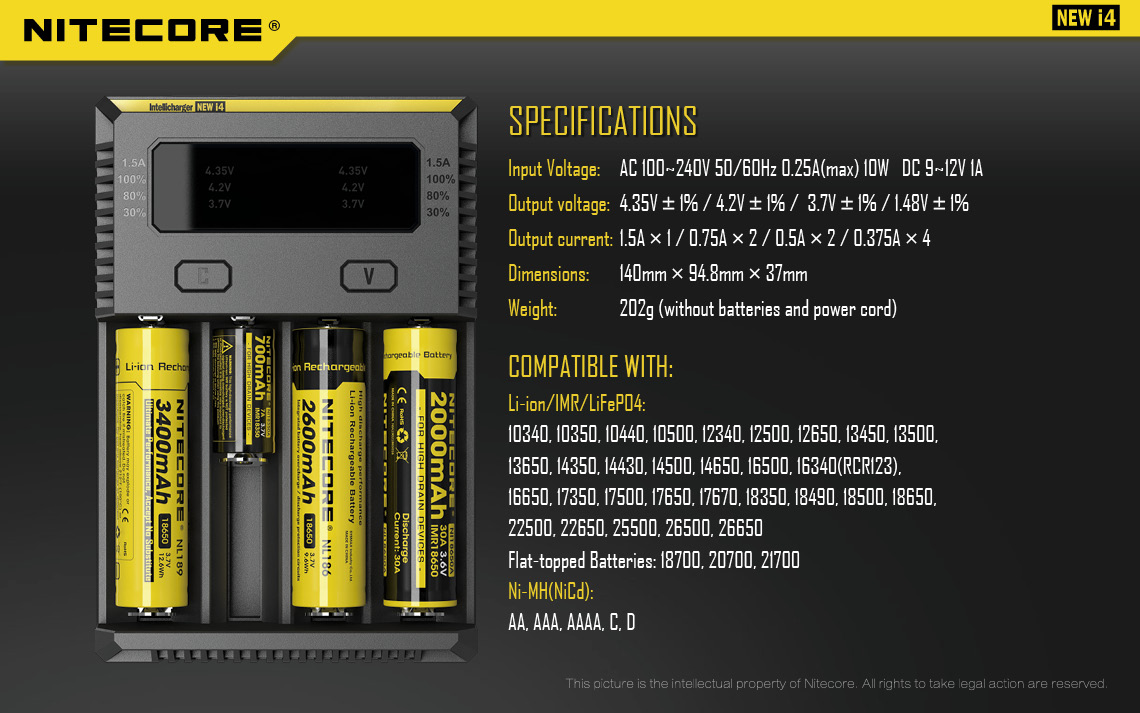

PRODUCT SPEC

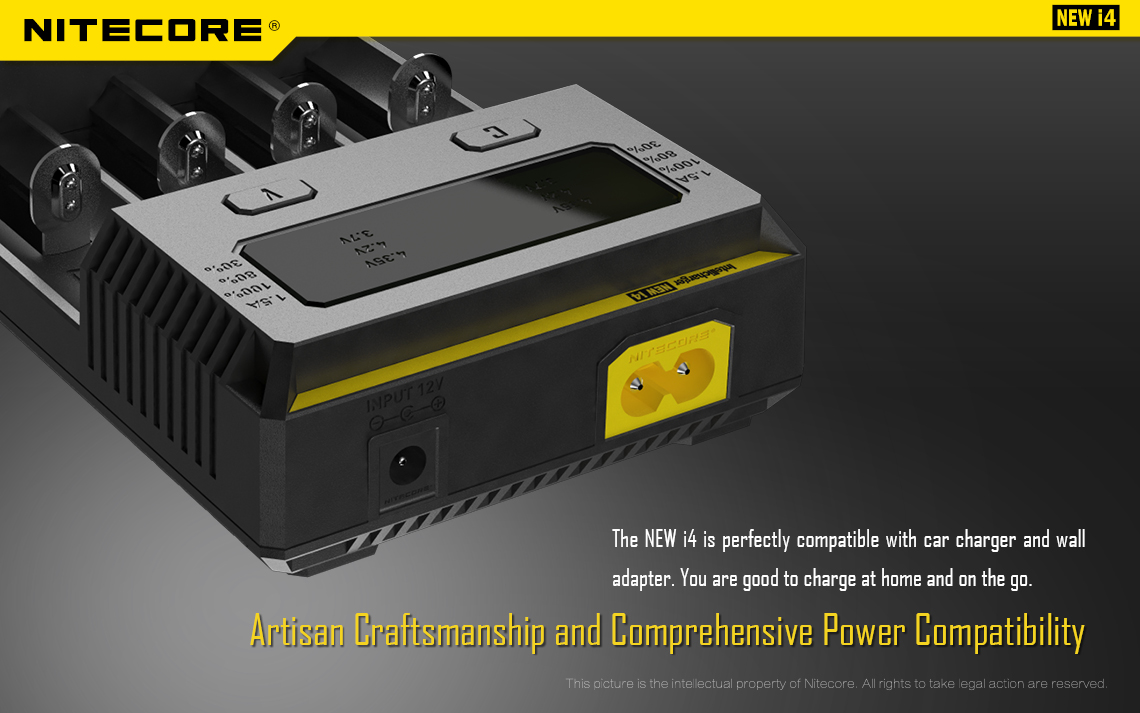

Input
AC 100~240V 50/60Hz 0.25A(max) 10W DC 9~12V 1A
Output Voltage
4.35V±1% / 4.2V±1% / 3.7V±1% / 1.48V±1%
Output Current
1500mA x 1 / 750mA x 2 / 500mA x 2 / 375mA x 4
Compatible with
Li-ion/IMR/LiFePO4: 10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 22500, 22650, 25500, 26500, 26650 Flat-topped Batteries: 18700, 20700, 21700 Ni-MH(NiCd): AA,AAA,AAAA,C,D
Dimensions
5.51″ x 3.73″ x 1.45″ (140mm x 94.8mm x 37mm)
Weight
7.12 oz (202g) (without batteries and power cord)

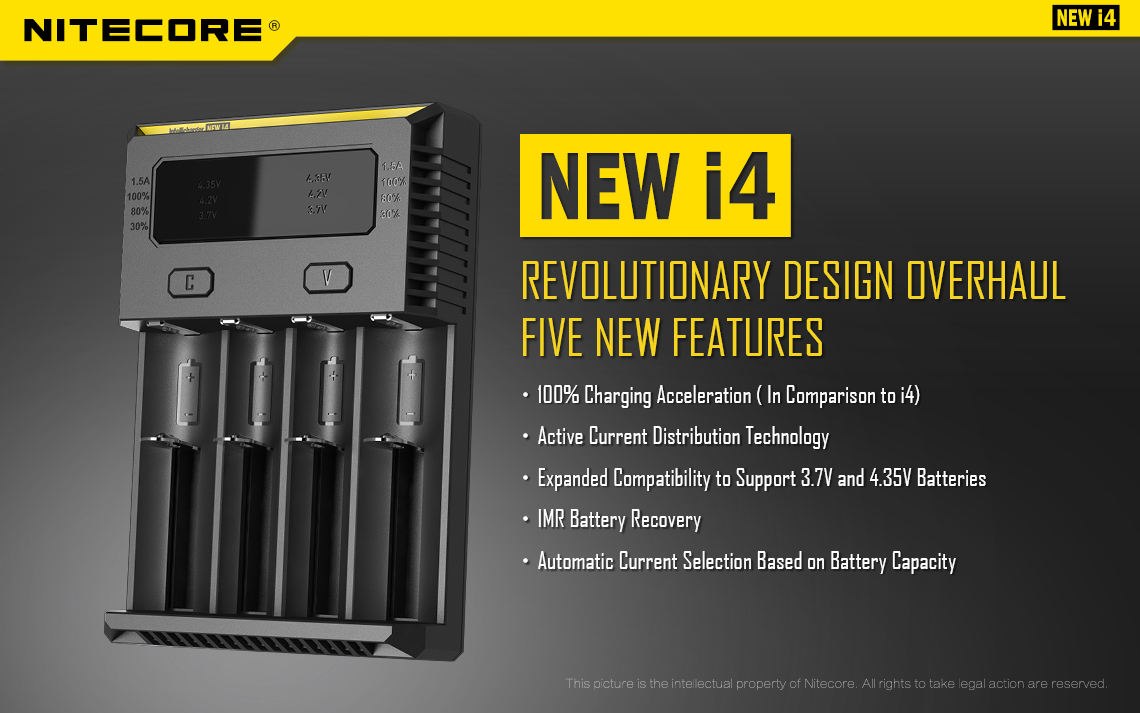

FEATURES

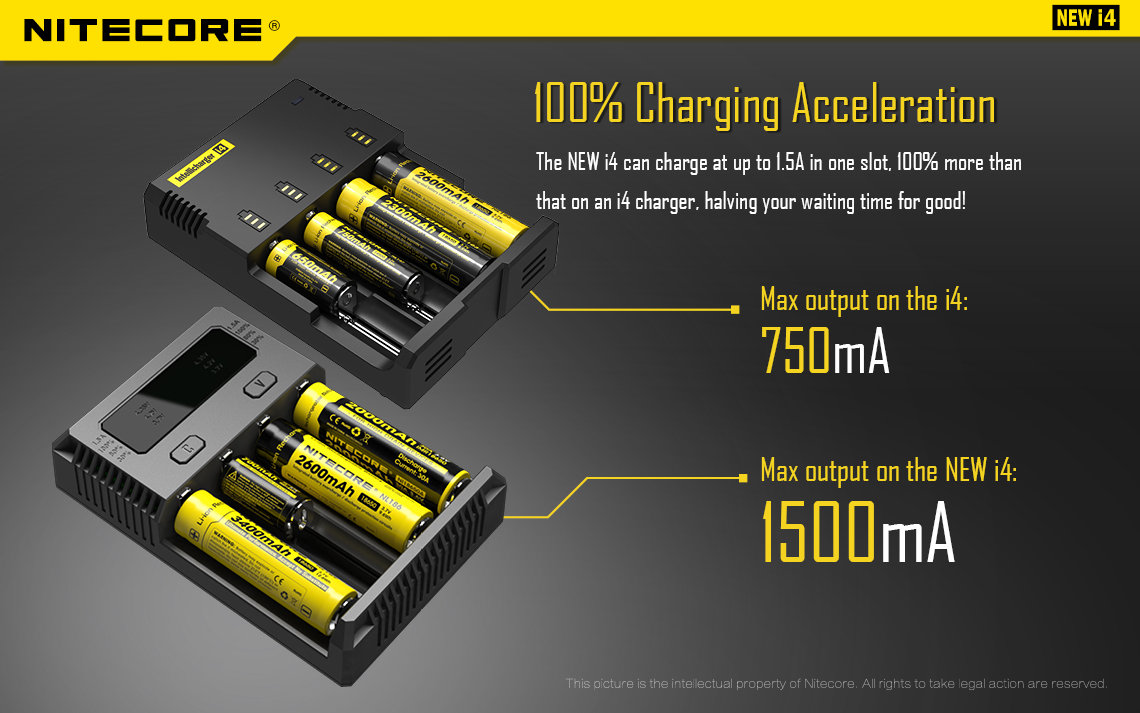

- Twice the charging speed of the i4 charger

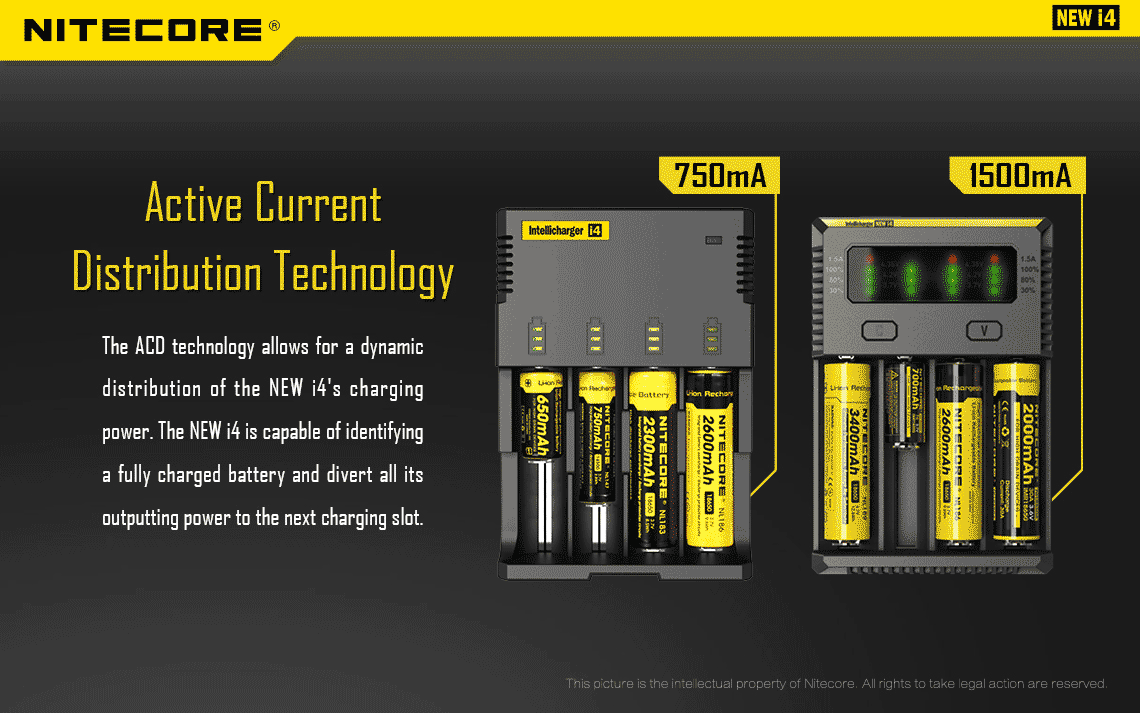

- Active Current Distribution (ACD) Technology

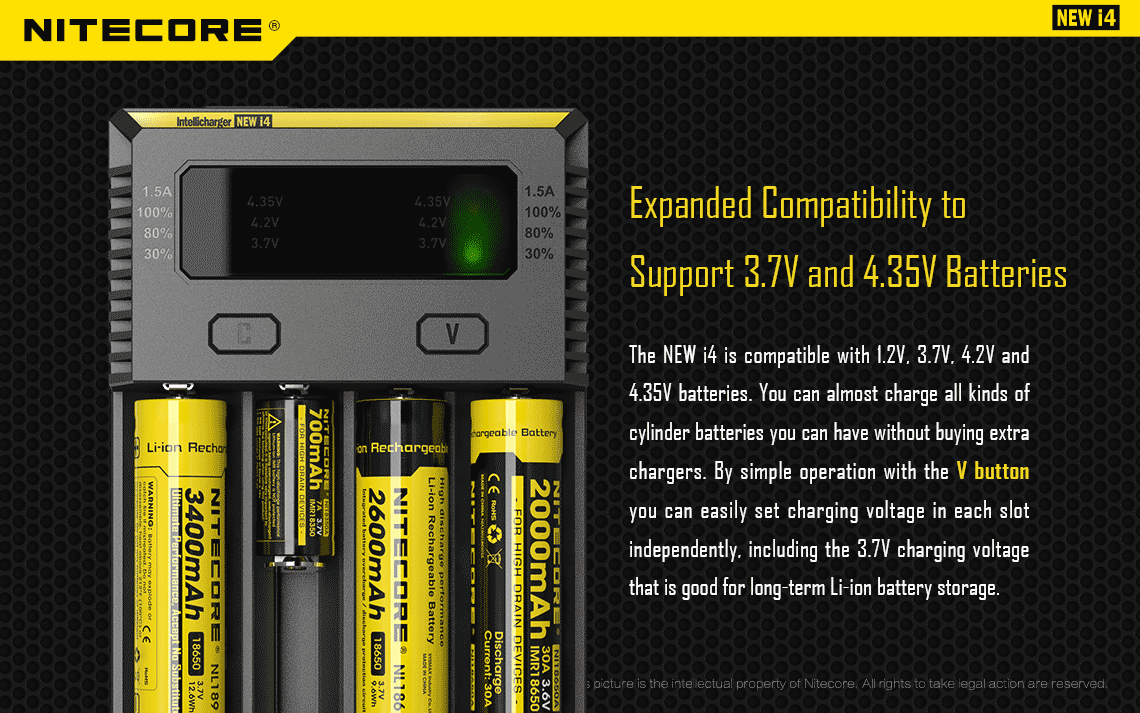

- Compatible with 1.2V, 3.7V, 4.2V, 4.35V batteries

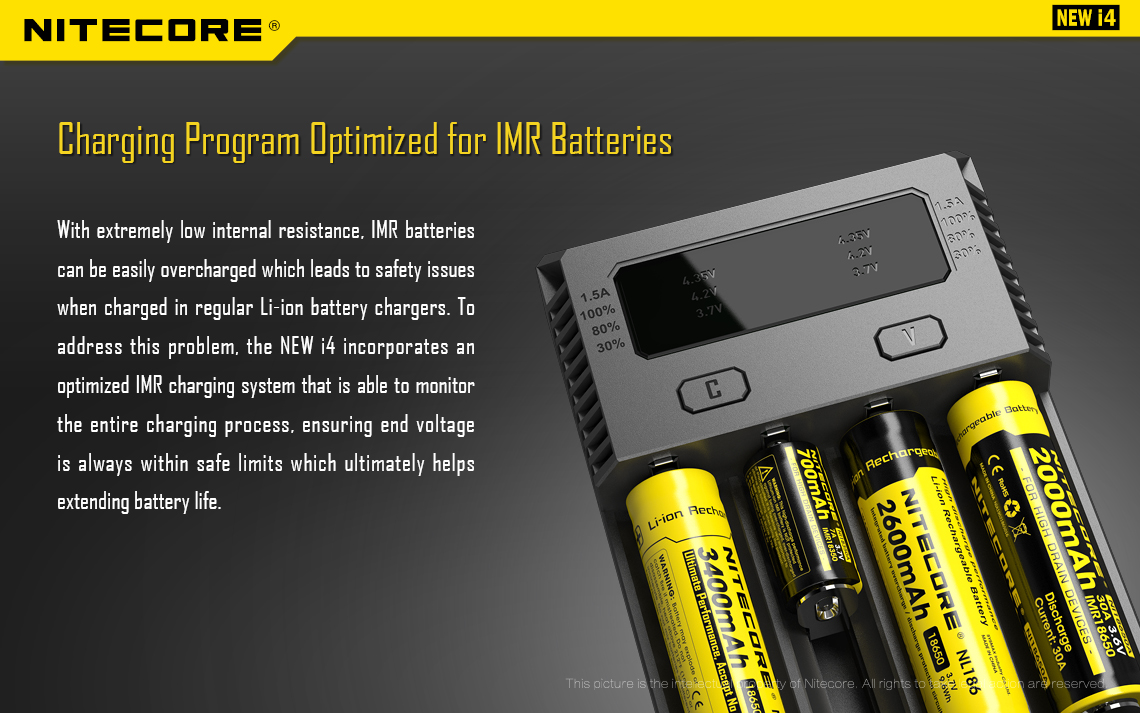

- Charging program optimized for IMR batteries

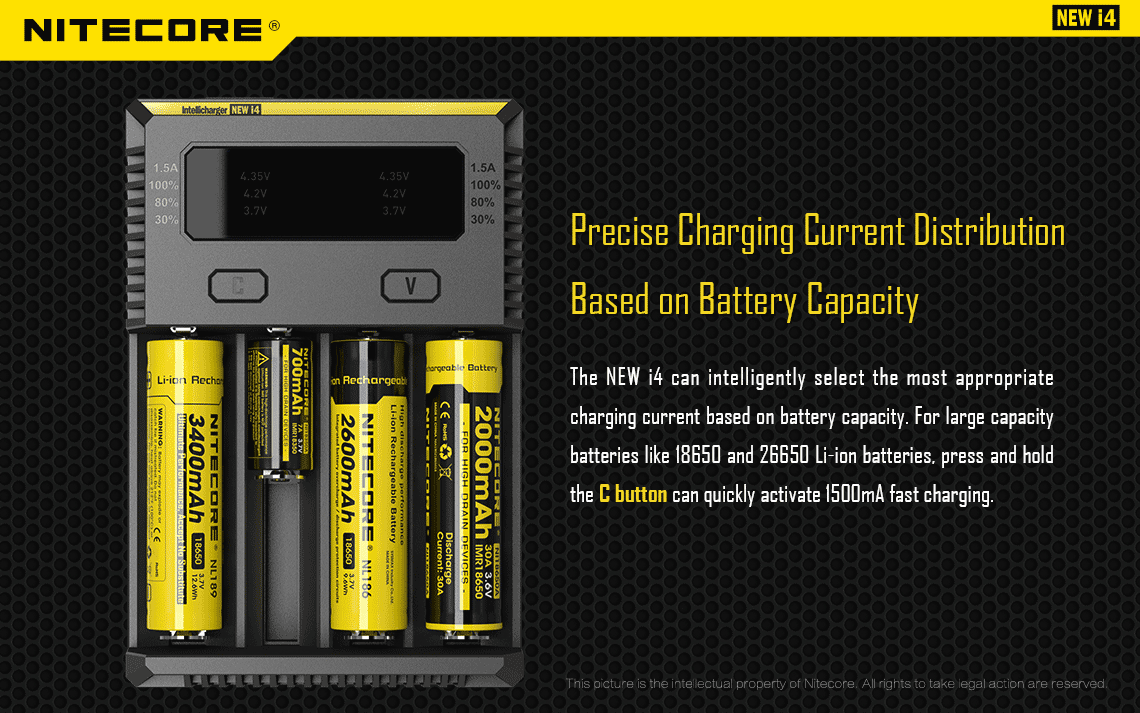

- Automatic current selection based on battery capacity
- Capable of charging four batteries simultaneously
- Terminating threshold for battery voltages and charging current can be set independently for each individual slot

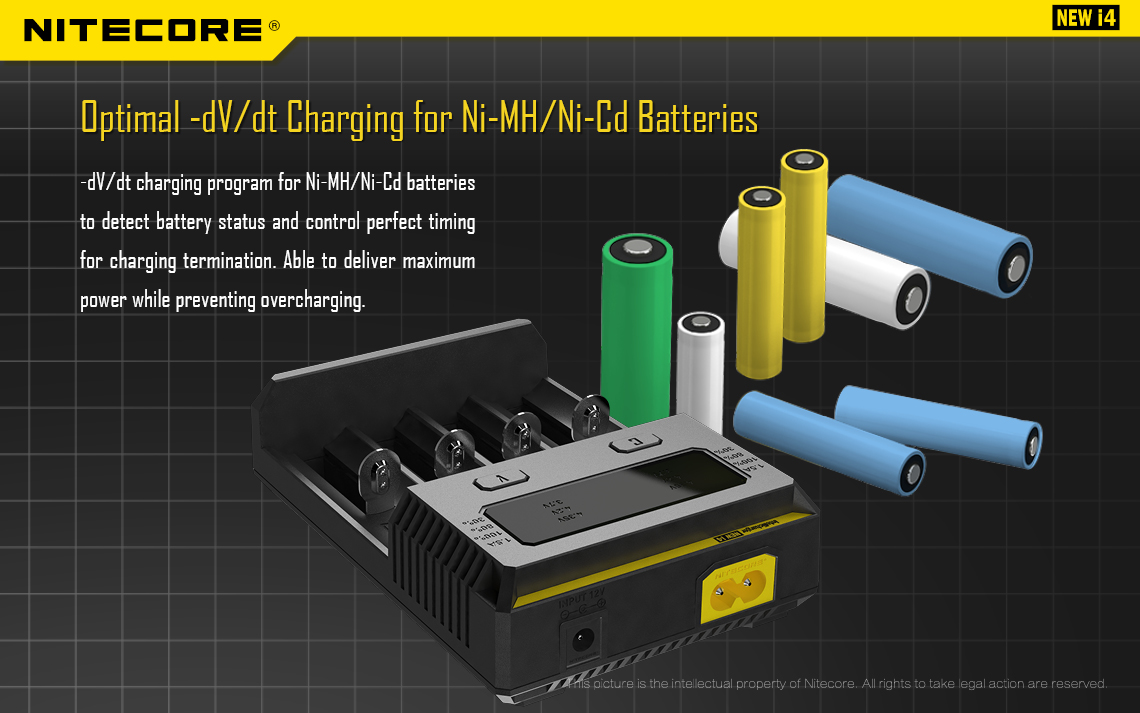

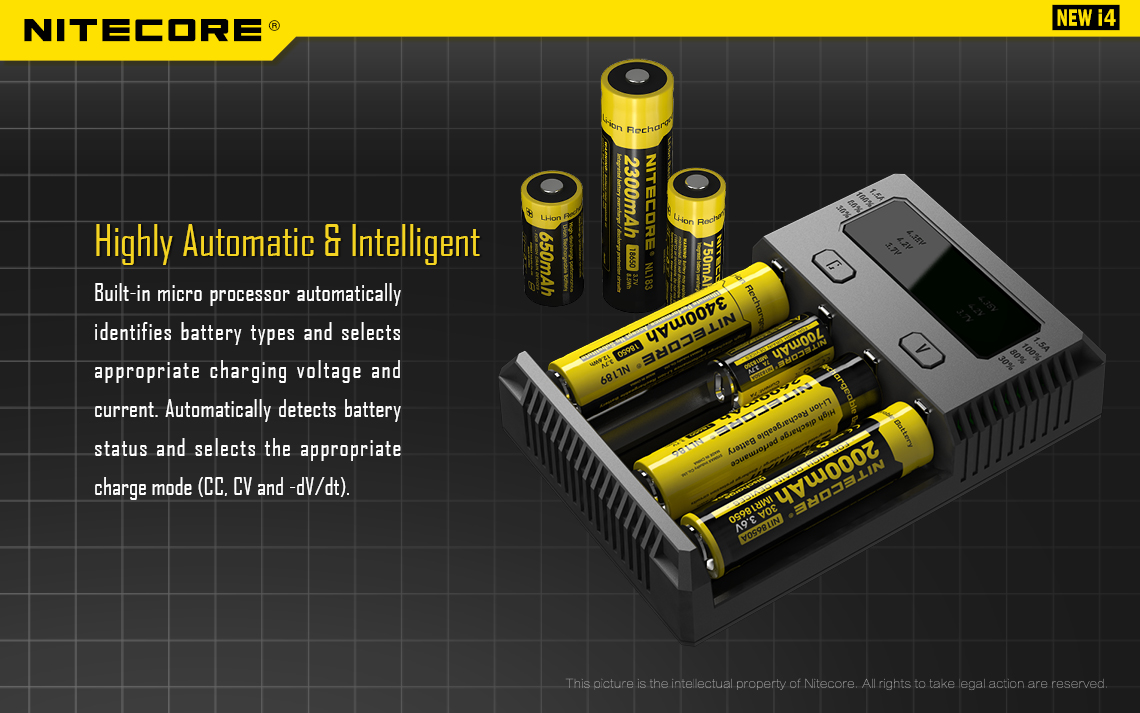

- Automatic adoption between three charging modes (CC, CV and dV/dt)
- Automatically detects battery power status and displays charging progress
- Automatically stops charging upon charging completion

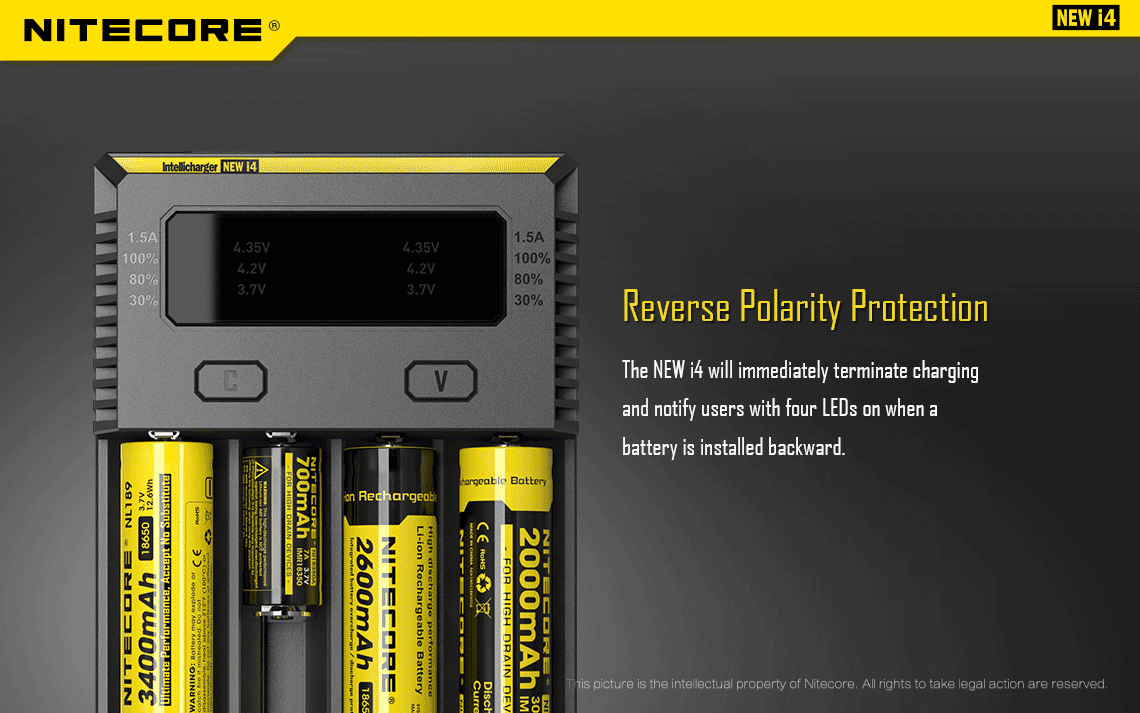

- Reverse polarity protection and short circuit prevention

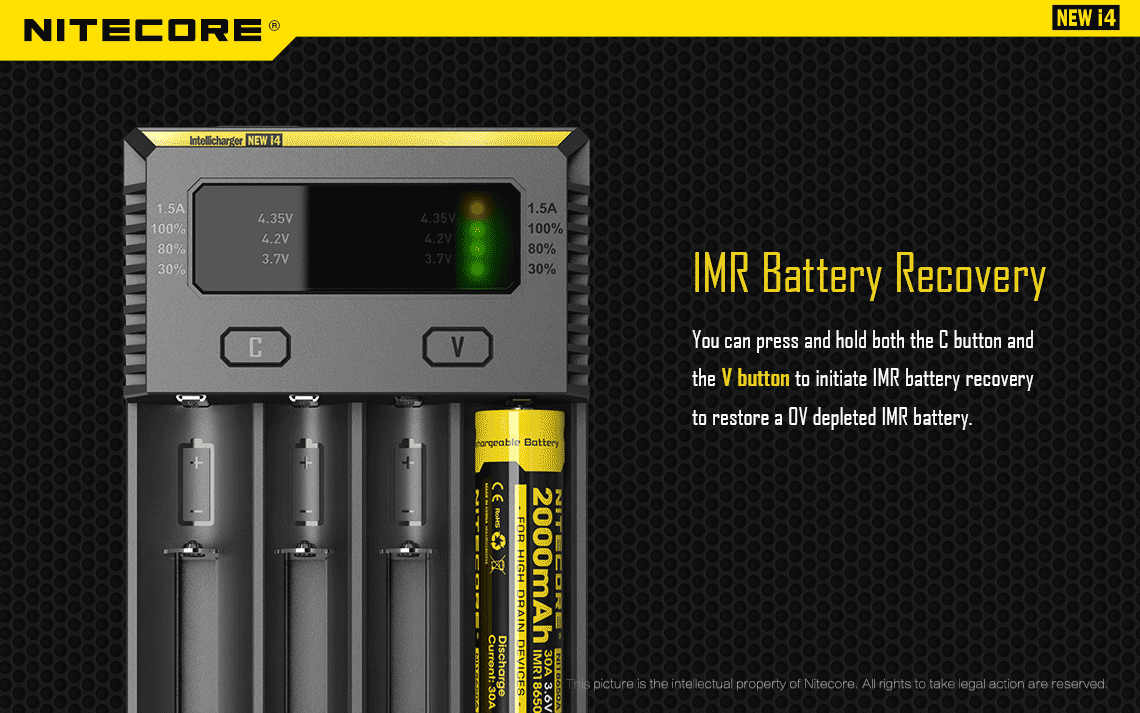

- Over-discharged battery activation

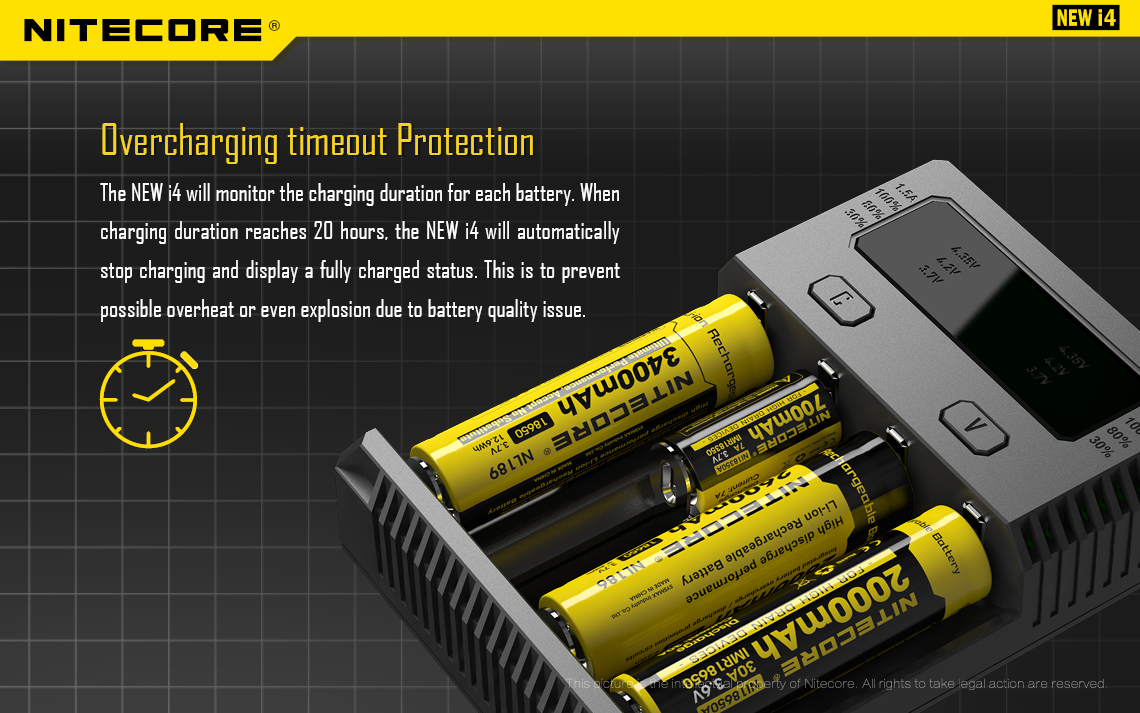

- Overcharging timeout protection

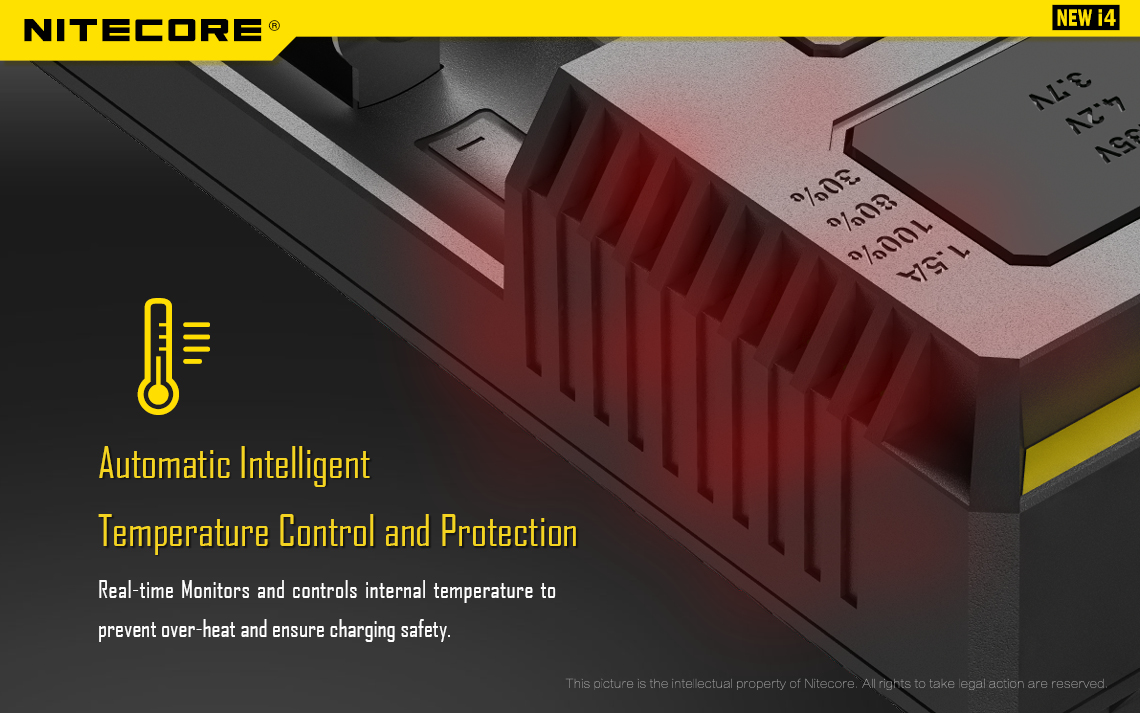

- Designed for optimal heat dissipation

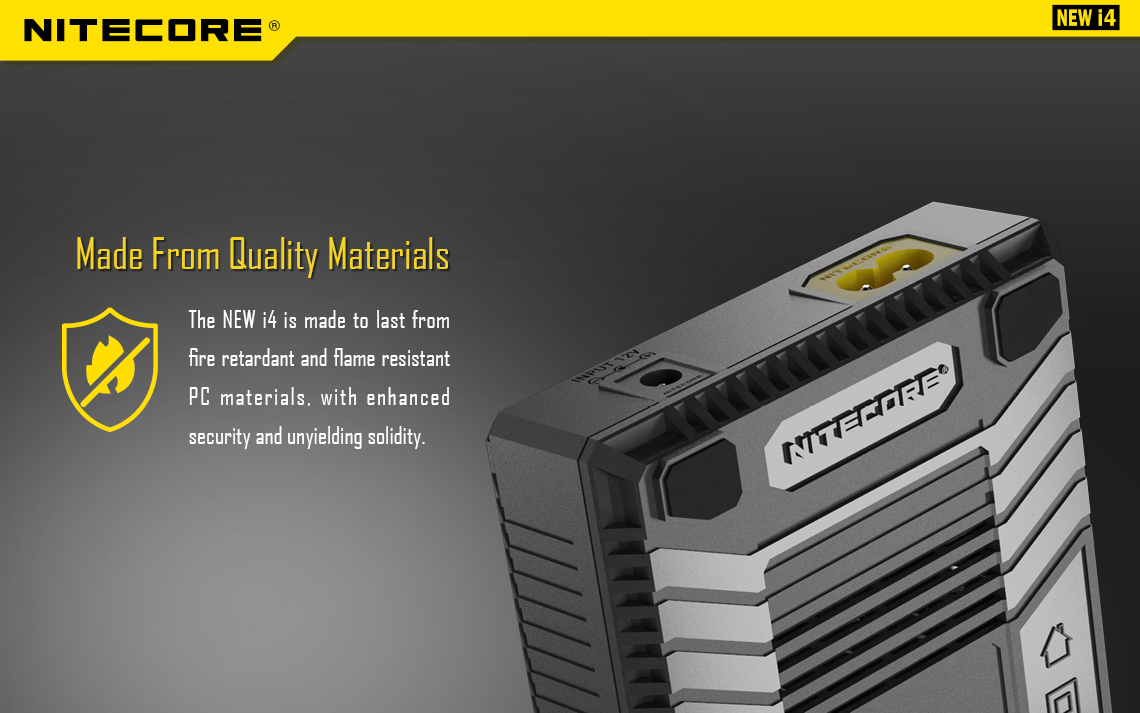

- Made from fire resistant, flame retardant PC materials
- Certified by RoHS, CE, FCC and CEC
- Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.
