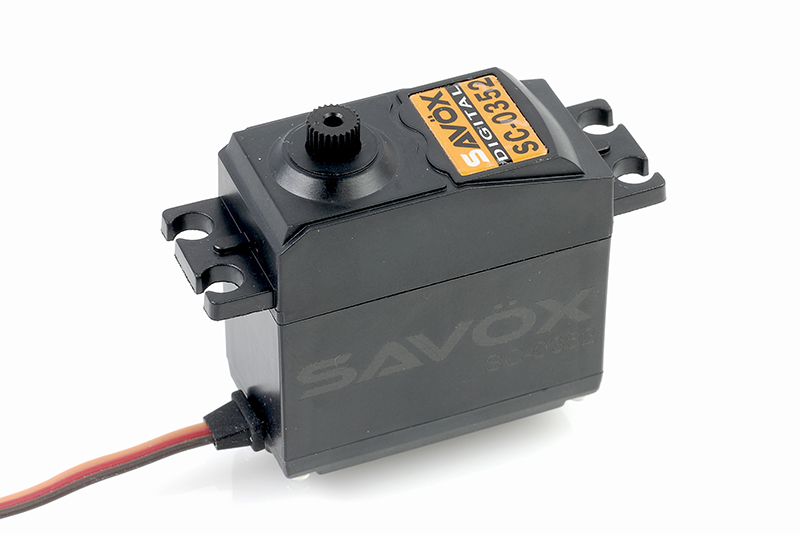

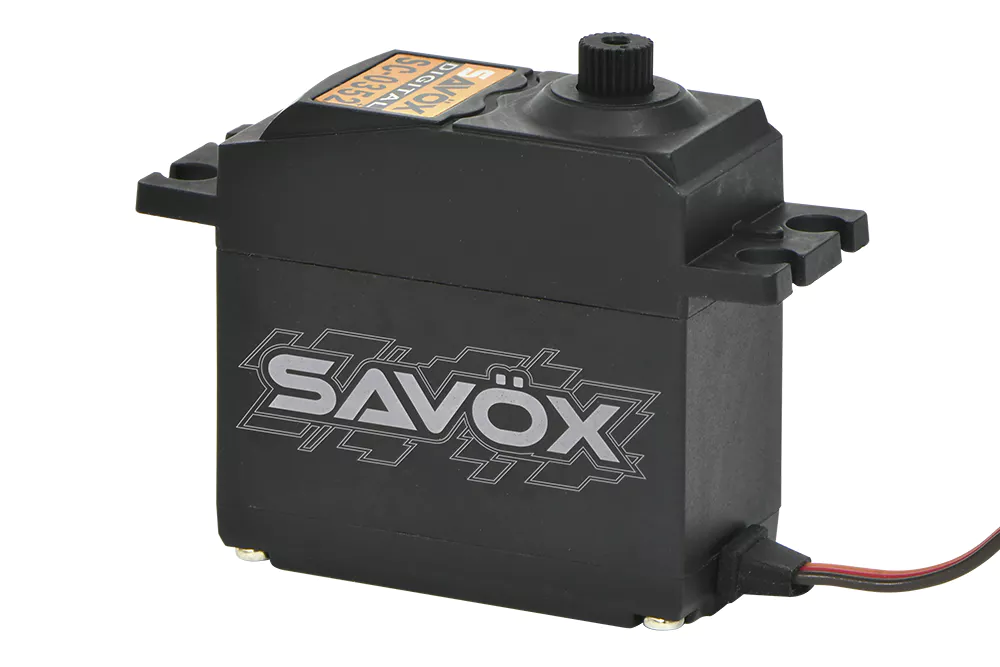

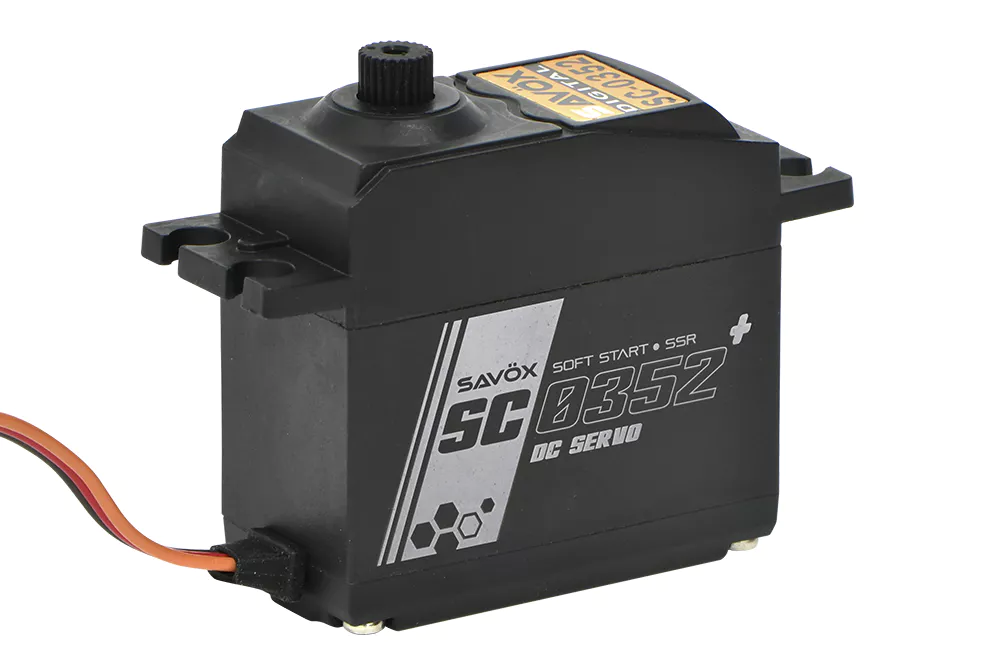

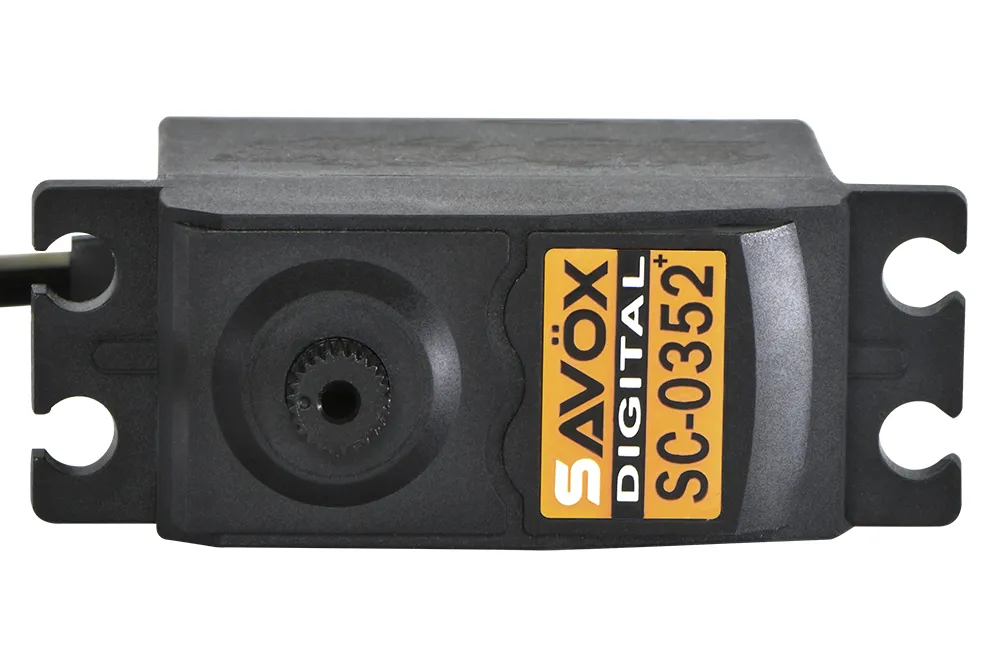

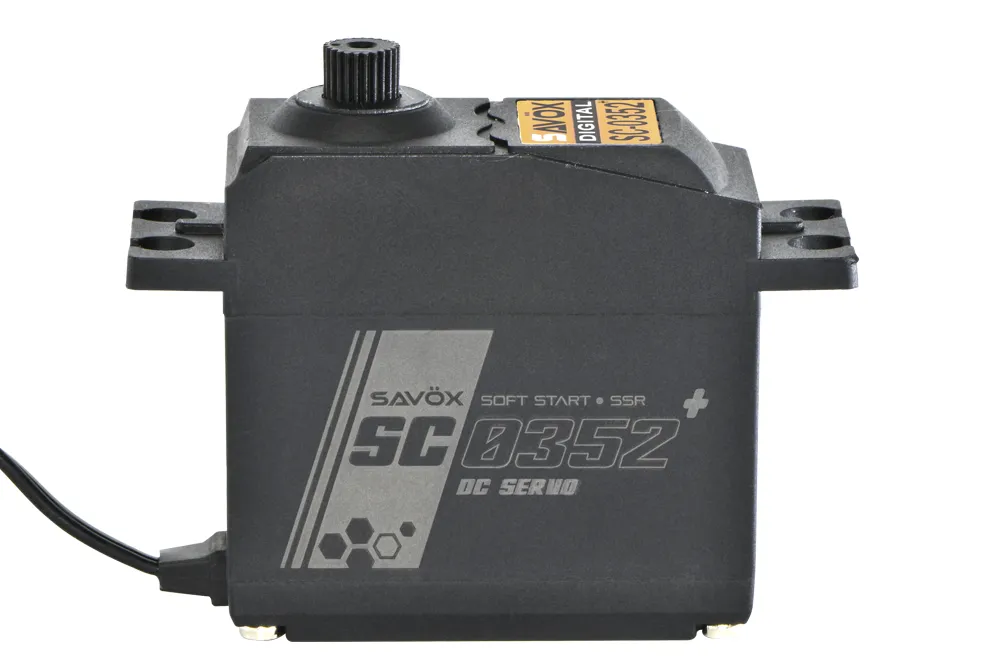

SAVOX SC-0352+ DIGITAL 6.5KG STANDARD SERVO
SAVOX SC-0352+ DIGITAL 6.5KG STANDARD SERVO
Savöx
SC-0352+
R425,00
Availability: 4 in stock
Description
Servo – SC-0352+ – Digital – DC Motor
The Savox SC-0352+ is considered a ‘standard’ servo, but outperforms other standard servos with more torque and dual bearing support.
Features:
• Dual ball bearing support for precision and gear support.
• Industrial plastic gear train is quiet and smooth.
• More torque than other standard servos.
Specifications:
• Torque @ 4.8v – 4.2kg
• Torque @ 6v – 6.5kg
• Speed @ 4.8v – 0.14 sec/60 deg
• Speed @ 6v – 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.7 x 20.0 x 39.4
• Weight: 42.0g
Technical Specs
General Info
- Item Nr
- B-12KG
- Barcode
- 4710006994062
- Brand
- Savöx
Servo – Specs
- Speed 60°/Sec @ 4.8V
- 0,26
- Speed 60°/Sec @ 6.0V
- 0,23
- Torque kg/cm @ 4.8V
- 10
- Torque kg/cm @ 6.0V
- 12
- Quiescent Current (mA)
- 6
- Rated Current (mA)
- 240
- Blocking Current (mA)
- 1600

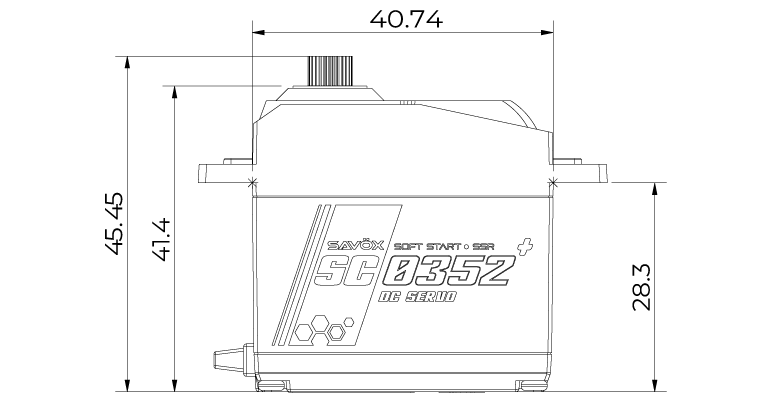

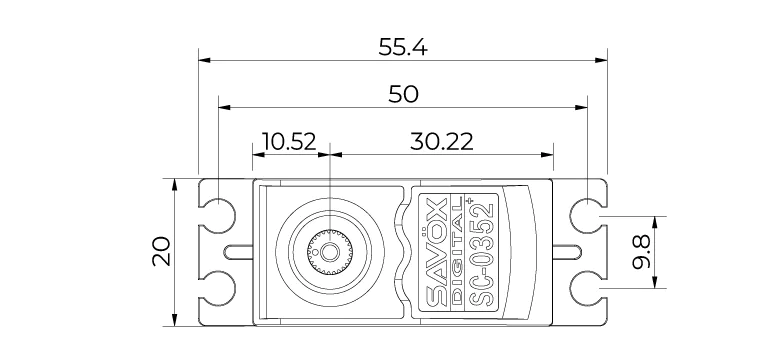

Servo – Dimensions
- Servo Type
- Standard Servo
- Spline Type
- 25T Spline 6,0mm
- Length (mm)
- 40,7
- Width (mm)
- 20,2
- Height (mm)
- 41,4
- Weight (g)
- 52
Servo – Technology
- Technology
- Analog
- Operating Voltage (V)
- 4.8V – 6.0V
- Servo Motor
- DC Core Motor
- Servo Protection
- Water – Dust Resistant
- Servo Positioning
- VR Potentiometer – Direct Drive
- Servo Gears
- Metal Gears
- Servo Case
- Composite Case
- Connector
- JR Universal + Colored Lead
Downloads
Safety Documents:
SC-0352+_CE_DeclarationForm_EN_12072017
Technical Data :
Servo Output Shaft-Tech Data (pdf)
